Firstly, floor maps are vital to any type of interior structure and project. According to the accurate floor map, taking out the necessary space for other arrangements would be easy. Moreover, there are a myriad of floor maps, holding a particular purpose. Starting from a two-dimensional version, measurements of walls and ceilings are planned. Therefore, it would be correct to say that a floor map makes the foundation of a house. Fortunately, the complete view of the house can be taken into observation by planning various dimensional floor maps.
The type of site for house maps is quite similar to floor plan. Therefore, site plans can be counted as either a single home or apartment project. A separate site map plan is meant to be designed for specific houses.
Nextly, the map contains the planning of the ceiling design. In other words, a ceiling plan is the reflection of a floor map. However, the appropriate map design for the ceiling matters a lot because of installing various fixers like wiring and lights.
The map of house designing also includes the elevations for inside and outside of the house. Moreover, the space of the house comes into life once the interior and exterior of the house is planned properly. The finalization to the home plan comes with these two mappings of the area.
To conclude, the guide towards the varied plans is comprehensive in front of you. Moreover, having a sturdy idea based upon the architectural design of the project would help to utilize the site space accurately. Therefore, the importance of house maps can not be compromised. And, it is obvious to say that maps of the house are basic levels to be completed before starting the structural design of the house.

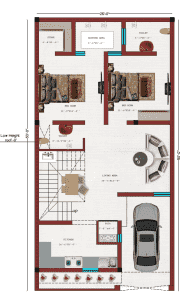

PLAN FACE: EAST
PLOT SIZE: 25X50
TOTAL AREA: 1250 SQFT
FLOOR PLAN.: 2BHK
PLAN FACE: EAST
PLOT SIZE: 40X80
TOTAL AREA: 3200 SQFT
FLOOR PLAN: 3BHK
PLAN FACE: WEST
PLOT SIZE: 80X60
TOTAL AREA: 4800 SQFT
FLOOR PLAN: 2BHK
PLAN FACE: EAST
PLOT SIZE: 30X60
TOTAL AREA: 1800 SQFT
FLOOR PLAN.: 2BHK
PLAN FACE : NORTH
PLOT SIZE: 30X60
TOTAL AREA: 1800 SQFT
FLOOR PLAN.: 2BHK
PLAN FACE : WEST
PLOT SIZE: 25X50
TOTAL AREA: 1250 SQFT
FLOOR PLAN.: 2BHK
